Product Details

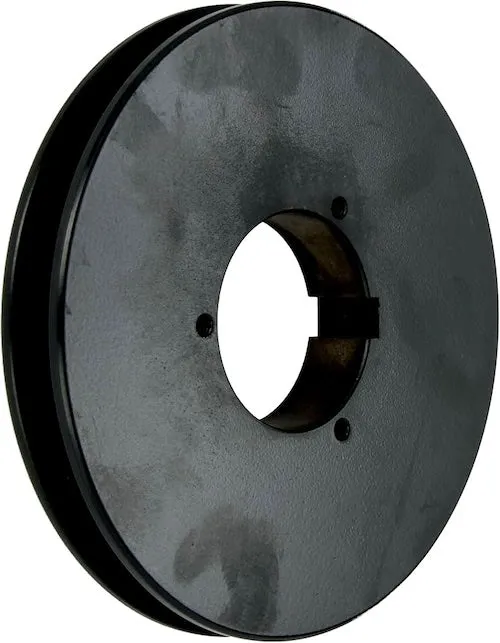

＋This 1B5V94 Sheave uses a , is directly interchangeable with other manufacturers, is 9.68" in diameter, and is manufactured in accordance with ARPM Standards for safe operation. The primary benefit with this sheave is that B5V-series sheaves you can use an extensively wide range of v-belts like; , , , , , , , and . What separates this 1B5V94 sheave from the others is that it is made using a high strength cast iron, is phosphate coated, painted, and balanced at the factory. Using the high-strength cast iron grade that we do offers a higher tensile strength and is more wear resistant than the more commonly used grades. While the phosphate coated and then painted finish adds corrosion resistance to the 1B5V94 sheave. Then, because this sheave is balanced at the factory it runs smoother which gives bearings and other components of the equipment a longer working life. Using a taper bushed style sheave is beneficial because it makes the completed part a two-piece assembly which means if only one piece breaks you don't have to replace the entire assembly. Additionally, we stock a full line of premium , , , , , , , , , , , , , bearings, and much more!
1B5V94 Sheave Dimensions
- Sheave Size: 1B5V94
- Datum (A) Belts: 9.0"
- Datum (B) Belts: 9.4"
- Datum (5V) Belts: 9.5"
- Outside Diameter: 9.68"
- Bushing Used: B
- Dimension (OL): 2-5/16"
- Face Width: 1"
- Weight: 8.5 LBS
